Extreme Vehicles - Discovery 2

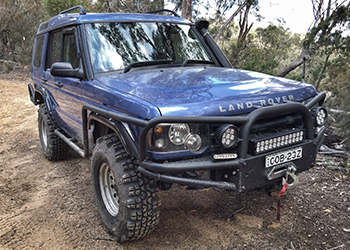

Stefan Discovery 2 a - 2004 TD5
Discovery 2 - Engine/ Exhaust/ Gearbox/ Chassies
- 3 inch Taipan exhaust
- Bruce Davis - Performance remap
- Aftermarket performance intercooler
- Turbo Timer
- Extended diff and transmission breathers
- TJM snorkel
- Red Arc Low Coolant Alarm
- Transmission oil catch can with breather
- Man Hummel Provent Crankcase Breather
- Heavy Duty Torque Converter
- Maxi Drive Transfer Case 30% Crawler Gears
- Speedo Correction Ratio Interface
- Extended braided break lines
- Transmission Oil Catch Can with cut off valve
Discovery 2 - Driveline
- Ratio Change to 4.3.7 in Diffs
- Heavy Duty Rear Axels (MaxiDrive)
- Braced read Diff Housing
- Ashcroft Front Heavy Duty Axels
- Ashcroft Pegged Rear diff air locker
- Ashcroft Front diff air locker
- Ashcroft heavy Duty CV's
- Transmission Protection Plate
- Greasable GBR Utha Heavy duty front drive shaft and uni joint
- ATP Chromoly Heavy Duty Pan Hard Rod
- Stage 2 Rotorflex rear Drive Shaft Conversion with HD GBR Utha DC Drive Shaft
Suspension/ Wheels/ Steering
- 4 inch suspension lift by Les Richmond
- Bielstein F4-BE5-B995-M1 rear and front Bielstein 6100 front travel shocks
- Extended braided break lines
- Dynamix 16x8 wheels +6 offset (standard +57)
- Koni Steering Damper
Interior
- ARB Onboard Compressor
- Cargo barrier
- Custom storage system
- LED interior lights
- 2 x LED strips in storage system
- monitor for front and rear camera
- remote winch switch in cabin
Communication/ Navigation/ Entertainment
- GME UHF Radio
- Alpine Stereo CDE-153 EBT
Discovery 2 - Light
- 2 x 70w LED spot lights
- 1 x 27" 240w LED CREE Light Bar
- 2 x 30W CREE Light Bars Front
- 2 x 40W CREE Light Bars Rear
- 2 x 10w CREE revers lights
- 4 x 10W CREE Rock Lights
- 1 x 18W CREE Rock Light
Electronics/ Batteries
- Dual batteries system Piranha DBE140S and DBM4
- Projecta Dual Battery monitor
Barwork/ Protection/ Winch
- Davis Performance Heavy Duty Rock Sliders
- Modified Xrox front bar with brush bar
- Heavy Duty Rear Wheel Carrier
- APT Diff Guards
- ATP Steering Guard
- Runva EWX 9500 Competition Winch with Dynema rope
- Custom rear bar, 3/4 rear panel chop custom front bar by Automotive Etcellence*
- Quick connect mud flaps
- Albright winch solenoid
* Discovery 2 Bar Work aussie milled 32nb heavy walled tube all round 10mm thick.
Chassis fish plates are cnc cut, drilled and tapped. The mounts that bolt to this plates are also cnc cut, and are 10mm thick. The clamps on the brush bars of the Discovery 2 are chromoly 4130 interlocking tube clamps the chassis fish plates are held together by 4 bolts each, high tensile m10
